    Noise-Reducer

    Industrial sound barrier with maximum insulation

    Request a quote+32 3 303 42 44
    Noise-Reducer industrial sound barrier around a padel court, with dark grey panels behind the mesh fence

    About Noise-Reducer

    The Noise-Reducer is a modular sound barrier made of steel and mineral wool. Specifically designed for industrial applications requiring maximum sound insulation, such as battery energy storage systems (BESS), transformers, cooling units, and production halls. The system is quick to assemble, weather-resistant, and can also be used for temporary applications (construction sites, events).

    Characteristics

    • Maximum sound insulation (DLR up to 32 dB)
    • Modular - quick to assemble and dismantle
    • Suitable for permanent and temporary use
    • Resistant to extreme weather conditions
    • Fire-resistant (Euroclass A1)

    Benefits of Noise-Reducer

    What sets this barrier apart from standard acoustic walls in practice.

    High insulation and absorption

    Rw = 30 dB sound insulation combined with absorption up to DLα 17 dB (cat. A5). Stops sound and prevents reflection, ideal for roadsides, railways, and business parks.

    Lightweight and slim

    Only 24-34 kg/m² and an installation depth of max 10 cm. Quick to install with a mobile crane, even to great heights.

    Custom-made

    Standard widths up to 396 cm and heights up to 200 cm per panel, customisable. Can be combined with transparent panels, doors, or a concrete lintel.

    Plantable with climbing plants

    The mesh nets provide an ideal surface for Ivy, Virginia Creeper, and other climbing plants. Becomes fully green in a short time, filtering fine dust and reducing CO₂.

    5 standard RAL colours

    Plastisol plate in light grey (RAL 7038), anthracite (RAL 7016), jet black (RAL 9005), dark green (RAL 6007) or metallic (RAL 9006). Other RAL colours and a wood grain finish (SA version) on request.

    Maintenance-free & 25+ year lifespan

    Galvanised steel frame (EN 1461), recyclable mineral wool core, and fire class A1 (non-combustible). Completely maintenance-free without vegetation.

    Technical specifications

    Sound insulation
    DLR up to 32 dB (cat. B4)
    Sound absorption
    DLα up to 11 dB (cat. A4)
    Standard heights
    2 - 8 metres
    Lifespan
    25+ years
    Material
    Galvanised steel + mineral wool
    Fire class
    Euroclass A1 (non-combustible)
    Plastisol plate

    Noise-Reducer colour options

    The separator mesh is available in 5 standard colours: light grey (RAL 7038), anthracite (RAL 7016), jet black (RAL 9005), dark green (RAL 6007) and brown-black wind cloth. The exterior Plastisol plate is available in the same 4 RAL colours plus a metallic finish (RAL 9006).

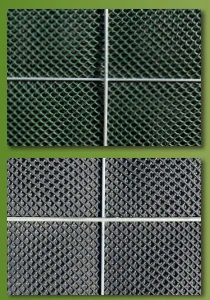

    Noise-Reducer separator mesh in RAL 6007 dark green and RAL 7016 anthracite
    RAL 7038Light grey
    RAL 7016Anthracite
    RAL 9005Jet black
    RAL 6007Dark green
    RAL 9006Metallic

    Other RAL colours available on request. Request a sample to assess the colour on site.

    Open the colour configurator

    Available types

    Four versions, one technology. Choose the type that fits your situation.

    Noise-Reducer SA-36

    Cost-optimised design, single-sided absorption.

    Absorption
    8 dB (single-sided, cat. A3)
    Insulation
    Rw = 30 dB / DLR = 25 dB (cat. B3)
    Construction
    Mineral stone wool with PE net and mesh on one side, coated steel plate on the back. Panel thickness 40 mm.
    Ideal for
    Between neighbours, along gardens, budget-friendly projects

    Noise-Reducer SA-45

    Extra high absorption, single-sided.

    Absorption
    11 dB (single-sided, cat. A3)
    Insulation
    Rw = 30 dB / DLR = 25 dB (cat. B3)
    Construction
    Mineral stone wool with PE net and mesh on one side, coated steel plate on the back. Panel thickness 50 mm.
    Ideal for
    Along roads, machinery, and air conditioning with high absorption requirements

    Noise-Reducer DA-50

    Double-sided absorption, lightweight.

    Absorption
    6 dB (both sides, cat. A2)
    Insulation
    Rw = 30 dB / DLR = 25 dB (cat. B3)
    Construction
    Mineral stone wool with PE net and mesh on both sides. Panel thickness 50 mm.
    Ideal for
    Between two sound sources, narrow spaces with double reflection

    Noise-Reducer SA-80

    Maximum absorption for heavy-duty applications.

    Absorption
    17 dB (single-sided, cat. A5)
    Insulation
    Rw = 30 dB / DLR = 25 dB (cat. B3)
    Construction
    Mineral wool with PE net and mesh on one side, coated steel plate on the back. Panel thickness 90 mm.
    Ideal for
    Railways, motorways, battery parks, industrial sites

    Noise-Reducer DA-80

    Optimal cost/acoustics, double-sided.

    Absorption
    11 dB (both sides, cat. A3)
    Insulation
    Rw = 30 dB / DLR = 25 dB (cat. B3)
    Construction
    Mineral wool with PE net and mesh on both sides. Panel thickness 90 mm.
    Ideal for
    Business parks, transformers, barriers between two sources

    Not sure which type fits? Request advice →

    Optionele afwerking - Combinable with any type

    Noise-Reducer Wood

    Give your sound barrier a warm, natural look with a front in thermally treated wood, on one or both sides. The acoustic performance (absorption + insulation) is fully maintained.

    • Applicable to all Noise-Reducer types (SA & DA)
    • Single-sided or double-sided wooden front
    • Thermally treated wood: durable and ecological, naturally preserved by steam and heat, without chemical treatment or biocides
    • Weathers beautifully to a silver-grey or retains its warm tone with maintenance
    Info sheet thermally treated wood (VC Wood)
    Noise-Reducer Wood sound barrier in thermally treated wood, showing the warm natural tone in a garden with hydrangeas and a hedge
    Close-up of Noise-Reducer Wood: warm natural tone of the thermally treated wooden slats with absorbent black mesh visible between the slats

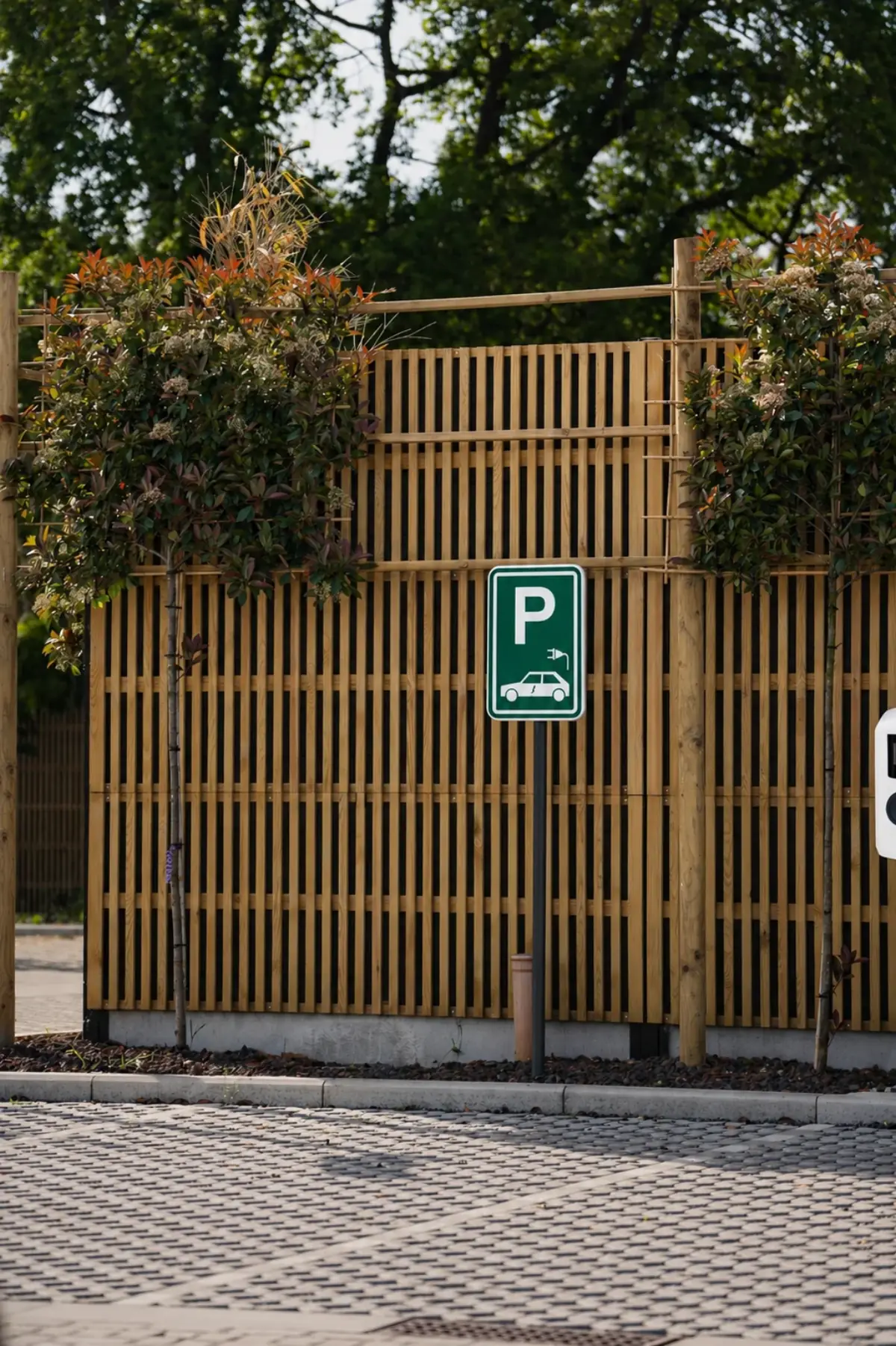

    Noise-Reducer Wood sound barrier along a parking area with integrated trees, shown in the actual natural wood tone
    Documentation

    Noise-Reducer brochures

    Download the product brochures with technical specifications, acoustic performance and installation details.

    Noise-Reducer SA-45 brochure

    Technical sheet, 50 mm panel thickness, high absorption cat. A3.

    Download brochure(PDF, 4 MB)

    Noise-Reducer SA-80 brochure

    Technical sheet, 90 mm panel thickness, maximum absorption cat. A5.

    Download brochure(PDF, 4.3 MB)

    Project photos

    Examples of Noise-Reducer in practice, installed around technical equipment and industrial applications.

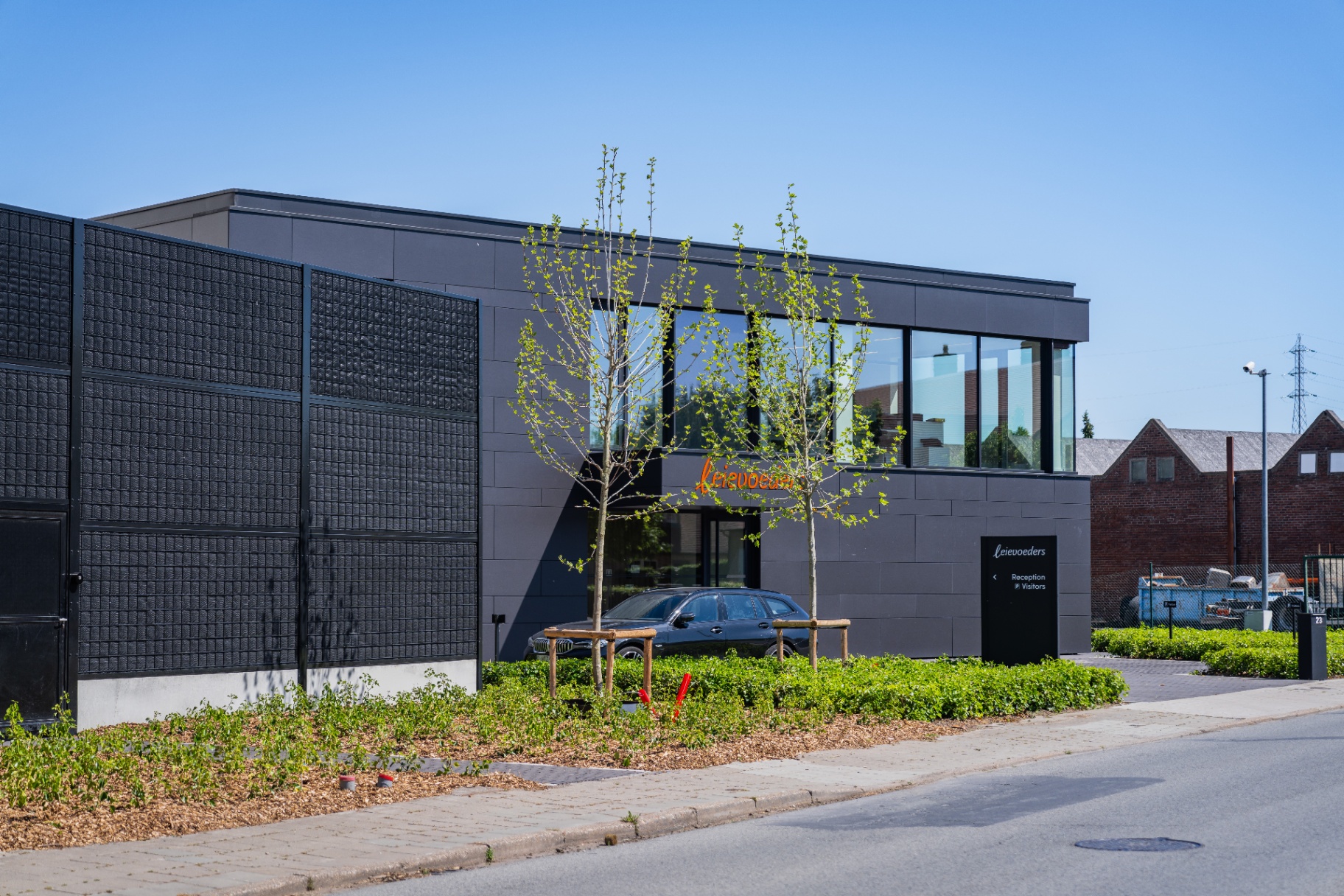

    Noise-Reducer sound barrier along the Leievoeders facade in Waregem, dark panels blending with the modern industrial architecture

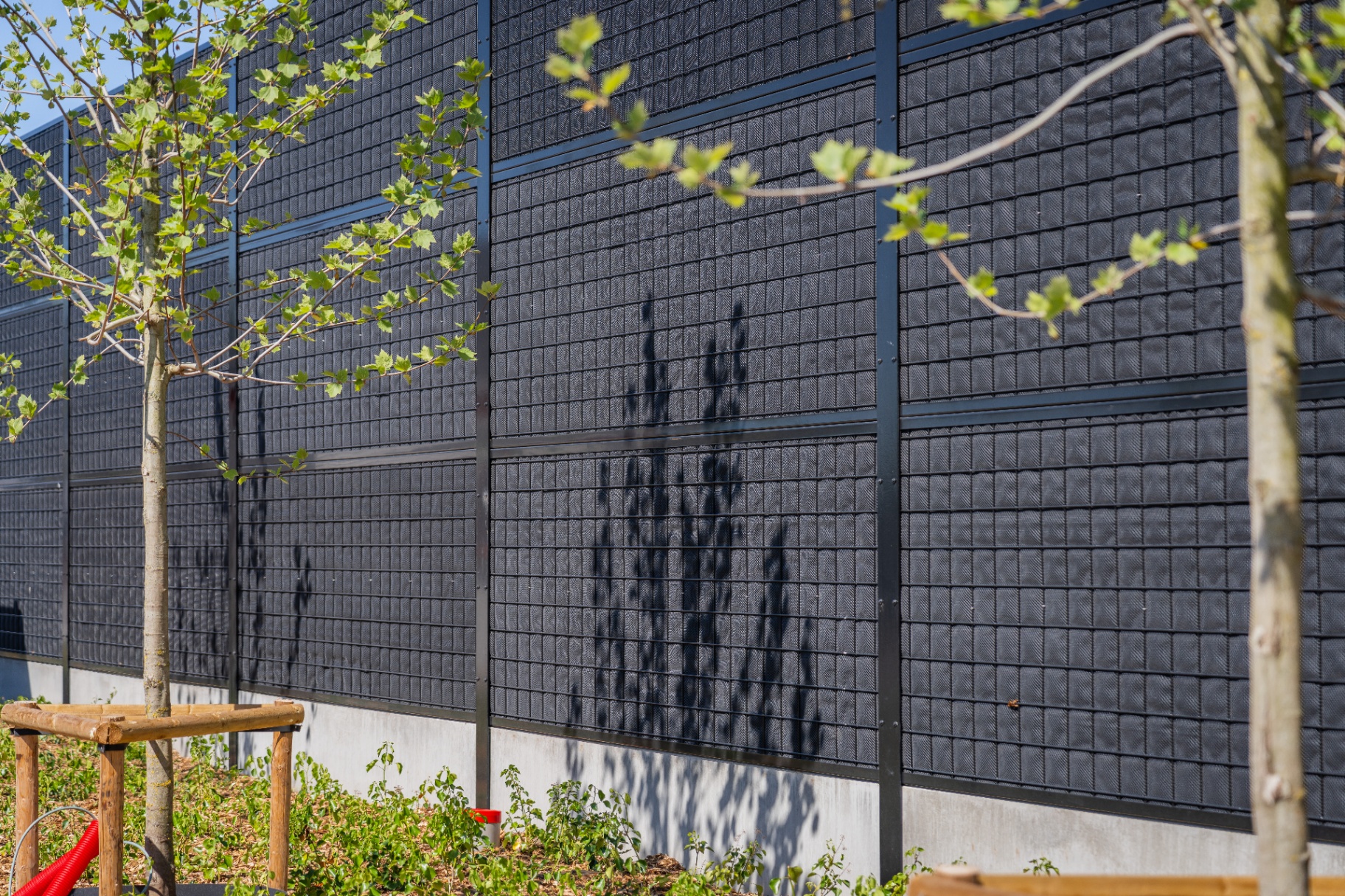

    Tall Noise-Reducer wall at Leievoeders with young trees in front, shielding noise from the neighbours

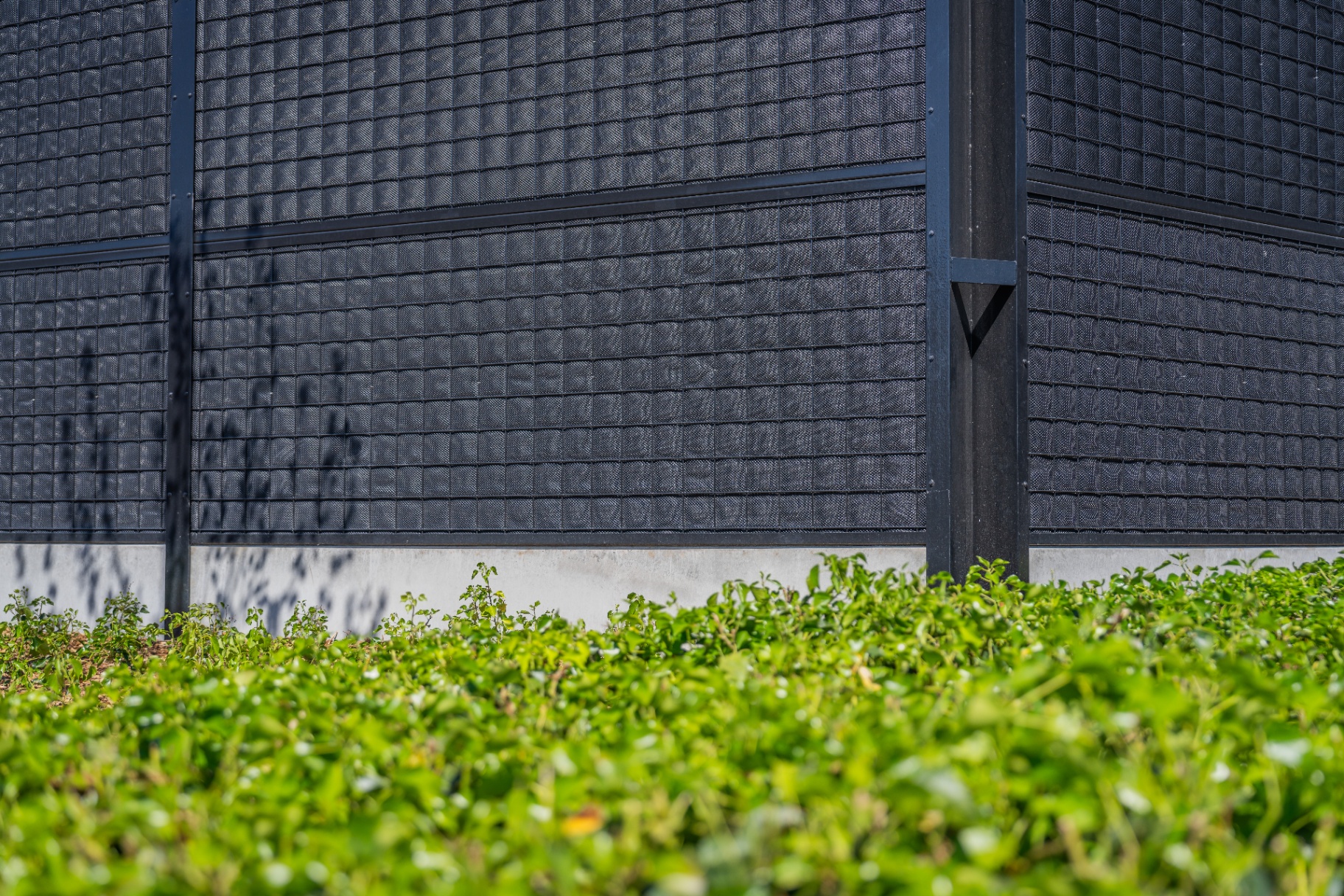

    Close-up of Noise-Reducer panels with absorbent structure and steel frame, mounted on a concrete base

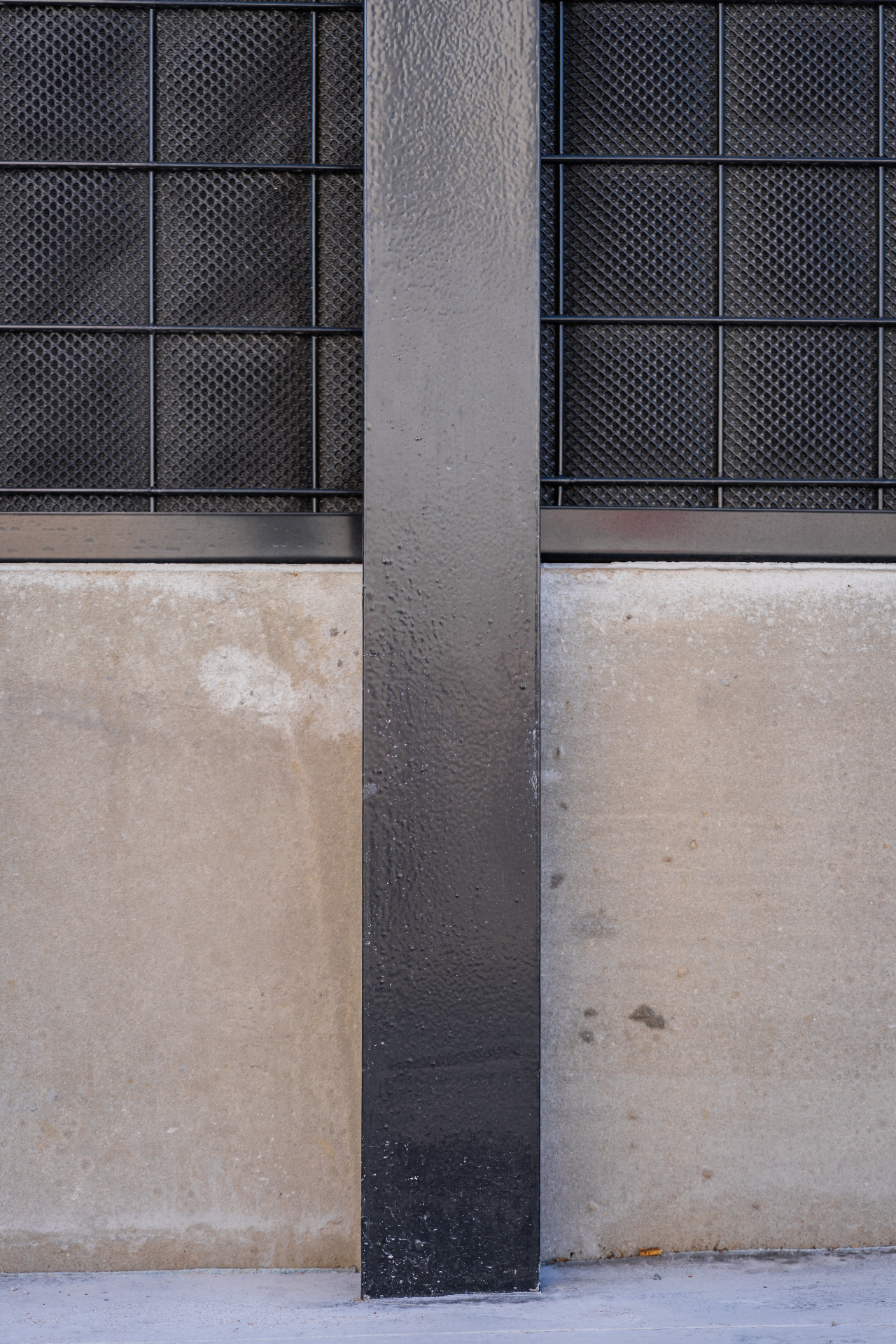

    Close-up of the steel post and absorbent mesh of a Noise-Reducer DA80 panel

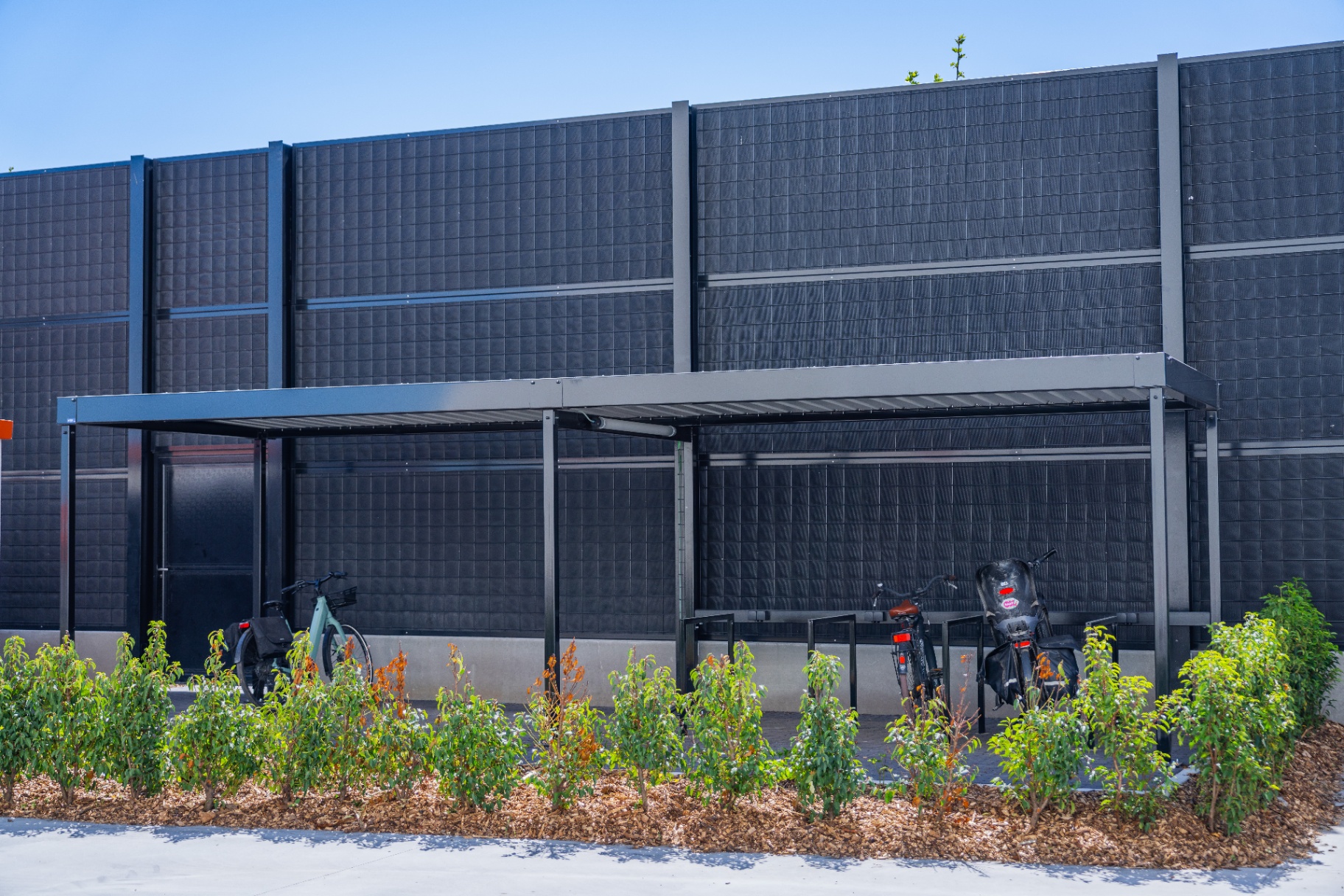

    Noise-Reducer wall behind the covered bicycle shelter at Leievoeders in Waregem

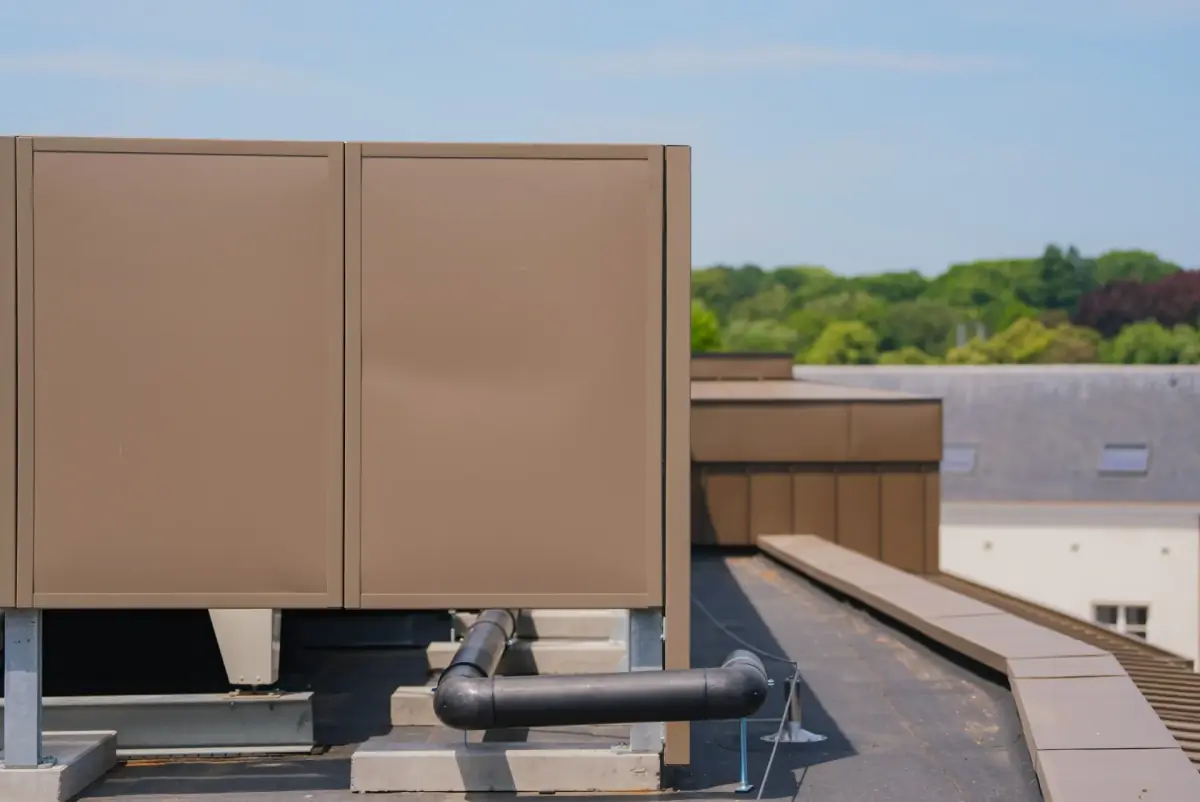

    Noise-Reducer panels around a rooftop installation with air handling units

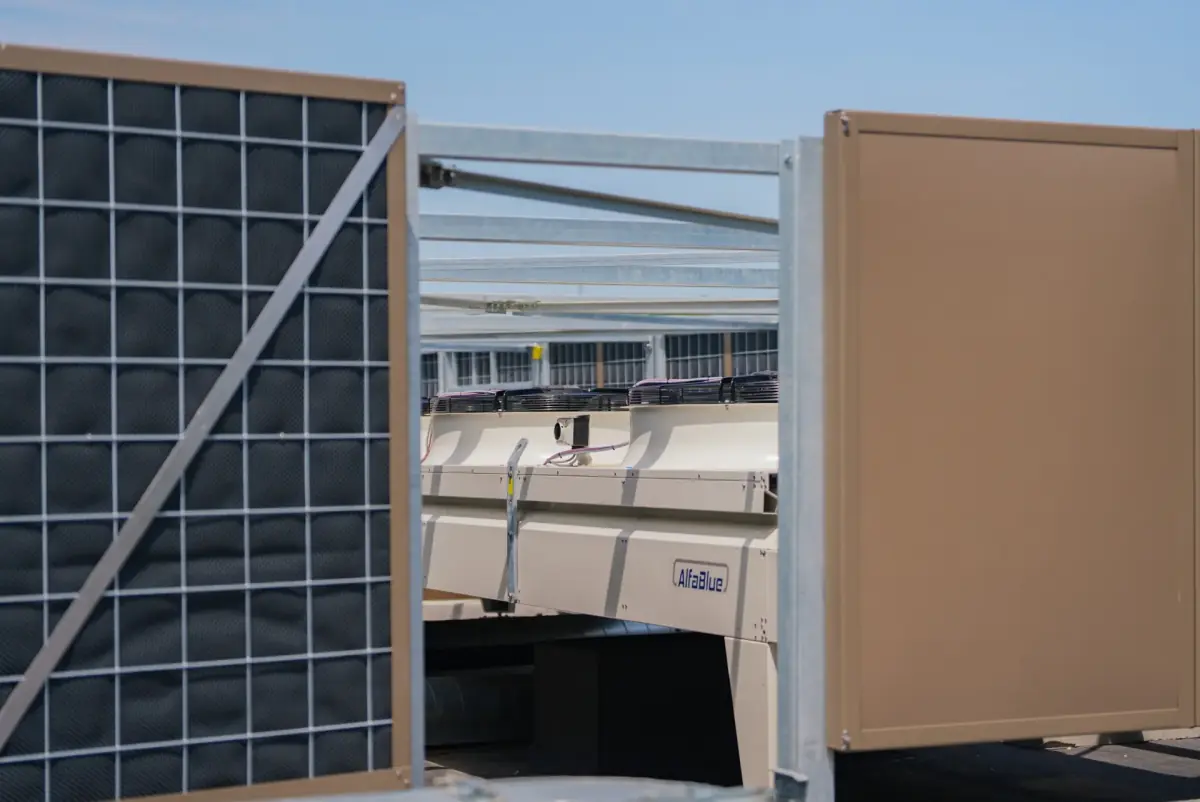

    Detail of Noise-Reducer panels with an absorbent inner side around an AlfaBlue cooling unit

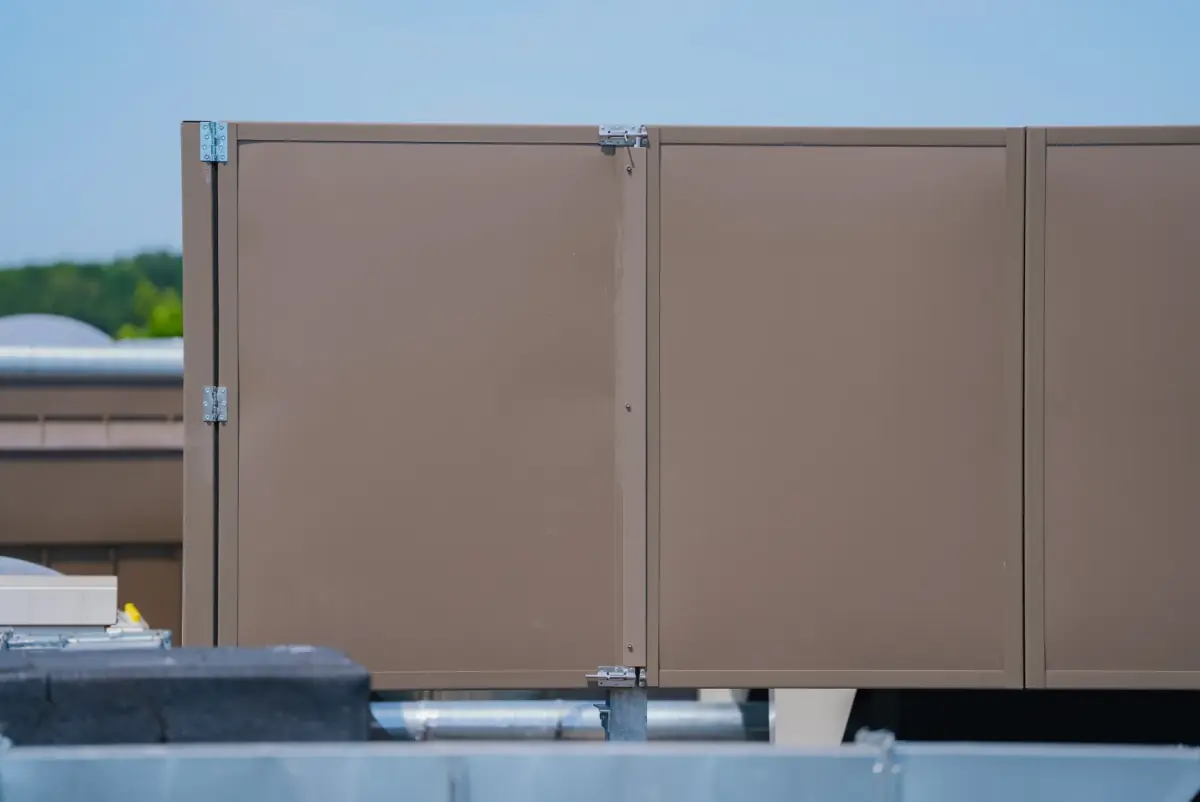

    Noise-Reducer sound barrier around heat pumps on a flat roof, overlooking a green environment

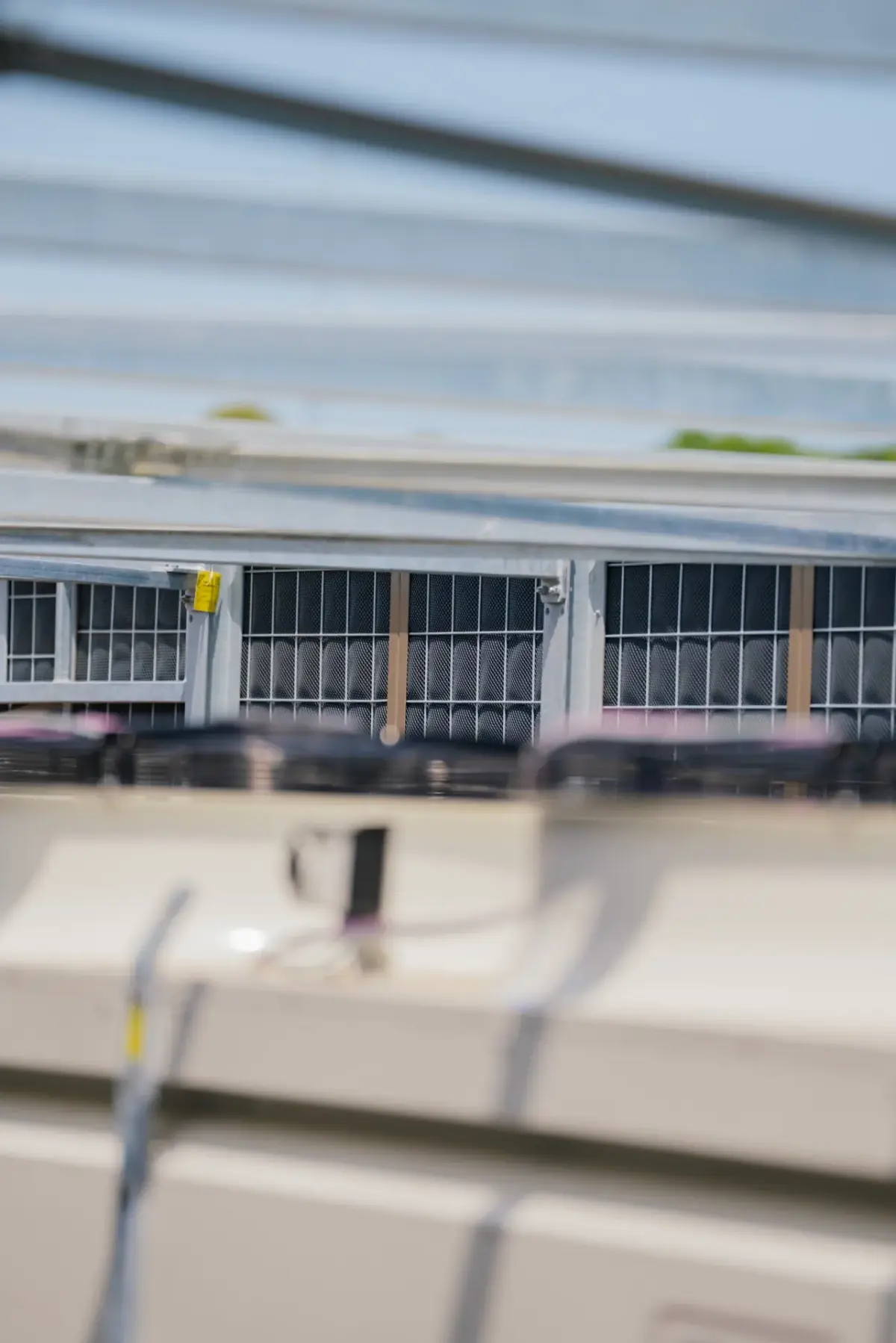

    Close-up of Noise-Reducer panels with an integrated access door around technical rooftop equipment

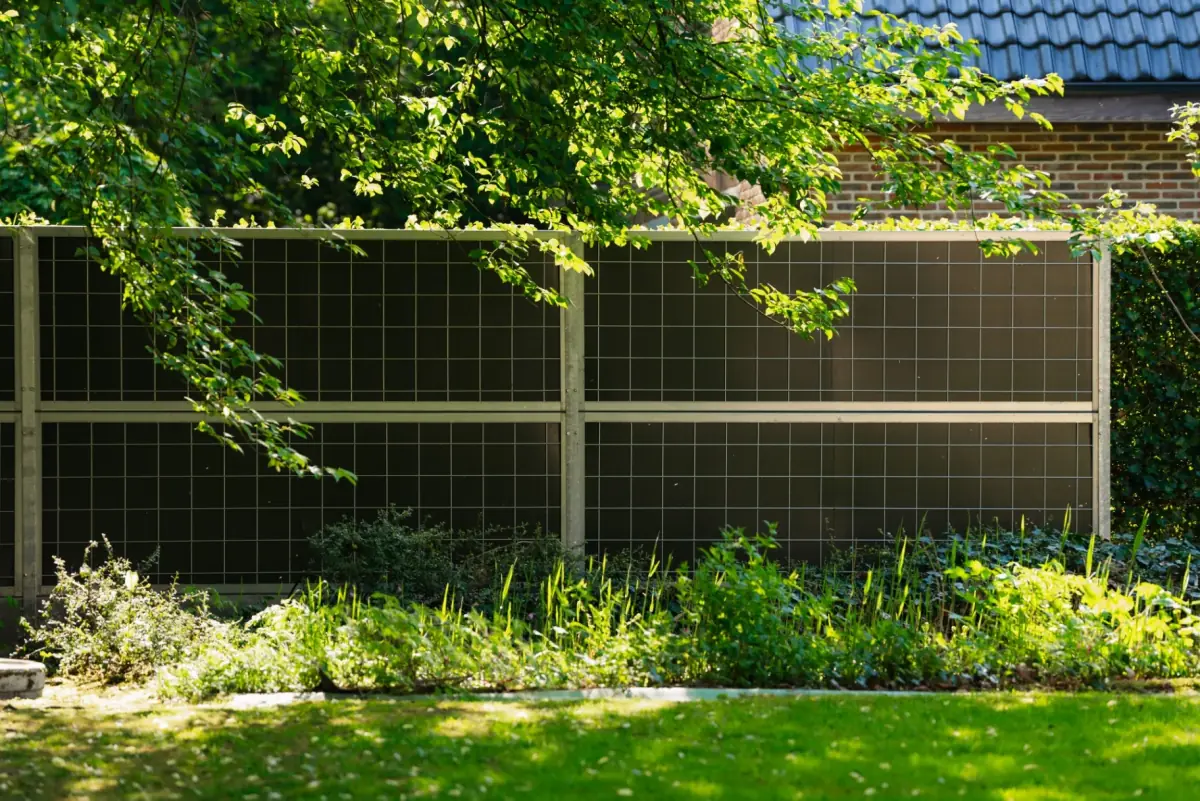

    Noise-Reducer sound barrier in a private garden with dark panels behind a mesh fence, surrounded by greenery

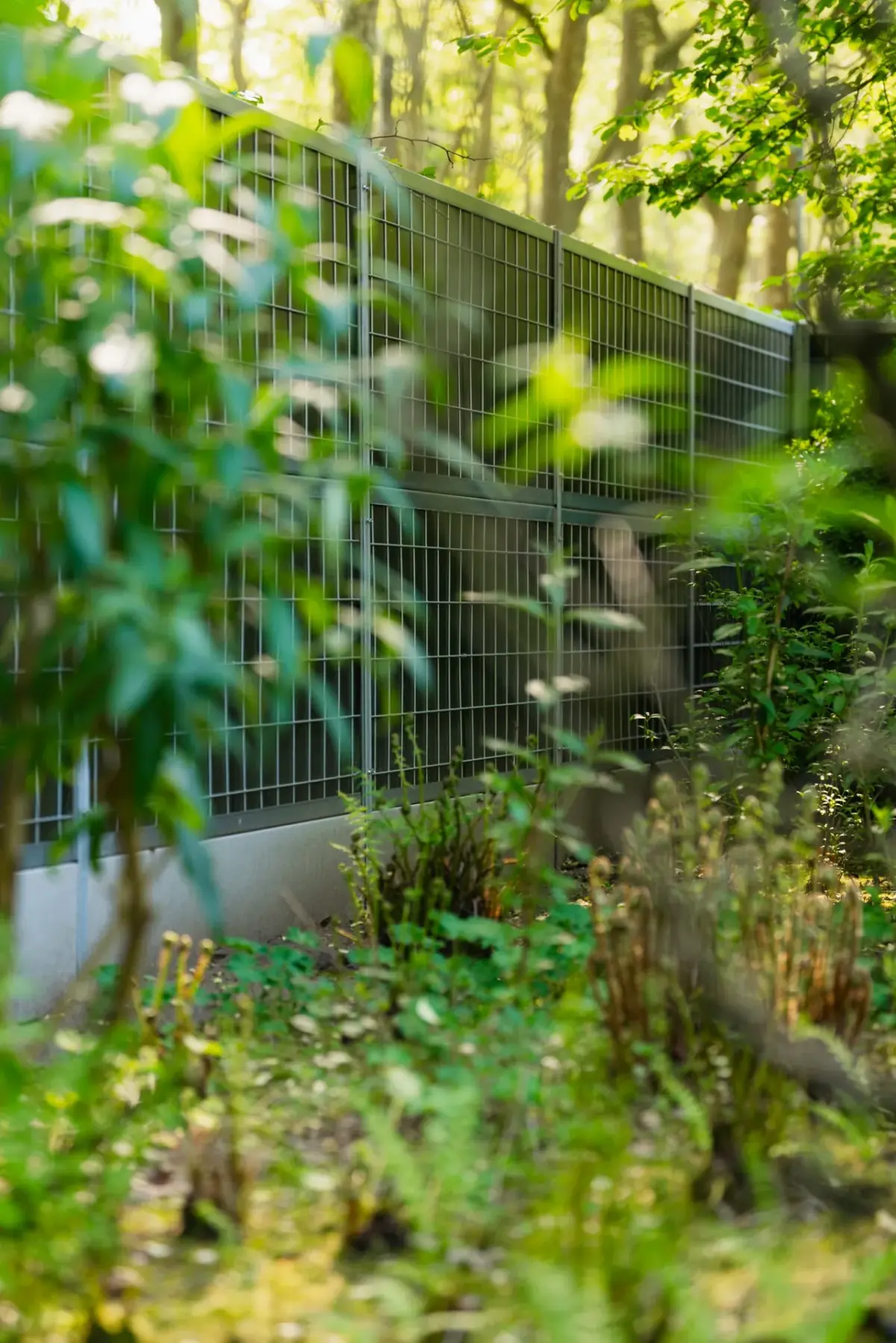

    Noise-Reducer sound barrier in a wooded garden to reduce noise from neighbours

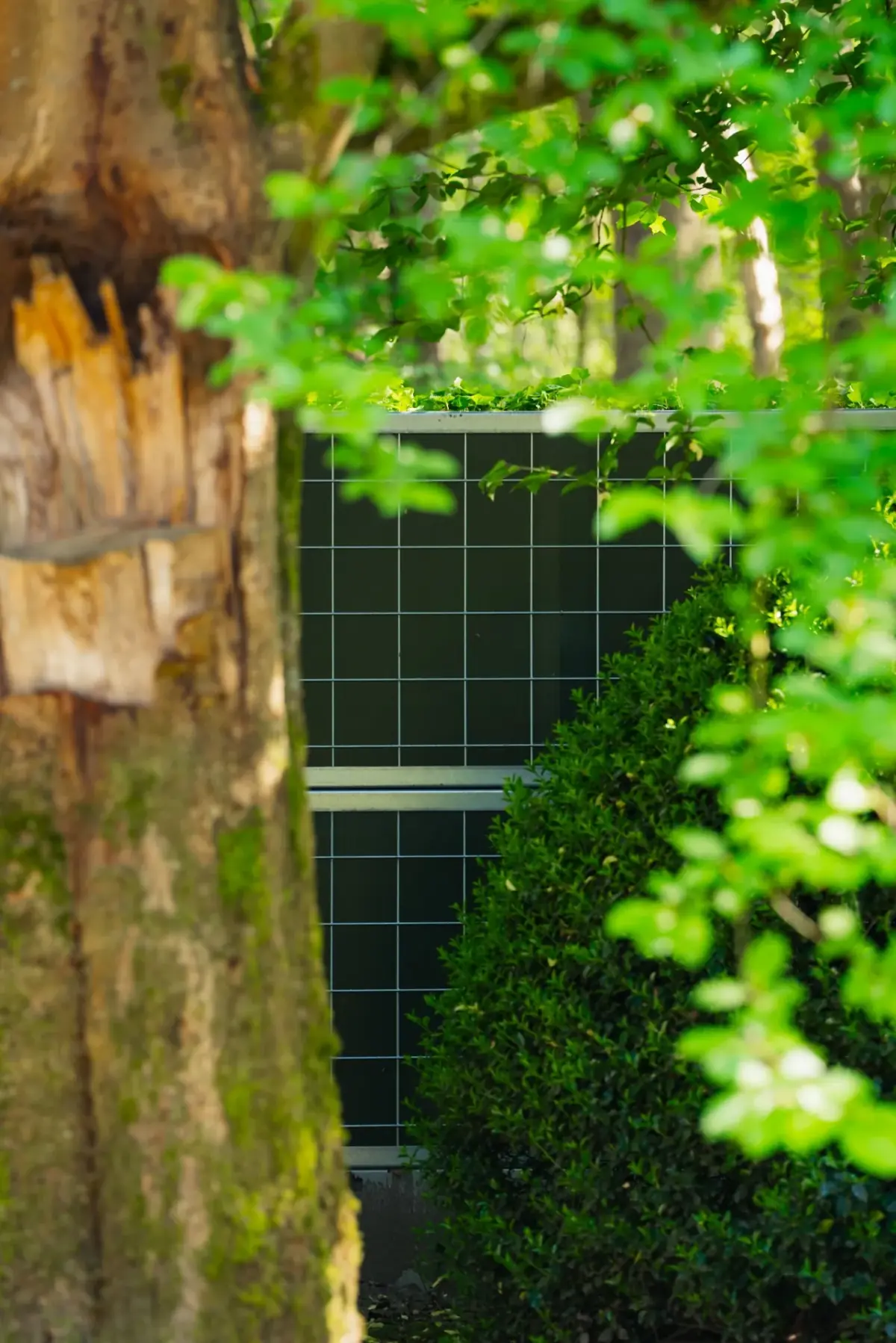

    Detail of a Noise-Reducer barrier in a garden with a vegetated top edge, integrated into the green surroundings

    Suitable applications

    Battery parks (BESS)TransformersIndustrial machineryHeat pumps & air conditioning
