Noistop Wood
Wooden sound barrier with ROCKWOOL core and Scandinavian design
About Noistop Wood
Noistop Wood combines the absorbing power of ROCKWOOL stone wool with the natural beauty of solid pine. The panel achieves 21 dB sound insulation (EN 1793-2, class B2) and 11 dB absorption (EN 1793-1, class A3) thanks to its layered build: a galvanised steel frame, a sound-absorbing stone wool core, protective PE netting and an FSC-certified pine cladding, chrome-free impregnated to use class III (EN 335:2013). Available in three designs (Elba, Ibiza, Sardinia) and in natural or brown-painted slats. Modules 200 cm wide, heights 45, 90 or 100 cm, stackable.
Characteristics
- Sound insulation 21 dB (EN 1793-2, class B2)
- Sound absorption 11 dB (EN 1793-1, class A3)
- FSC-certified pine, chrome-free impregnation
- 3 designs: Elba, Ibiza and Sardinia
- Natural or brown finish (RAL 8003)
- Wind load up to 1.02 kN/m² (EN 1794-1)
Technical specifications
- Sound insulation
- 21 dB (EN 1793-2, class B2)
- Sound absorption
- 11 dB (EN 1793-1, class A3)
- Module heights
- 45 / 90 / 100 cm (stackable up to 200 cm)
- Module width
- 200 cm
- Depth
- 30 cm
- Wind load
- Up to 1.02 kN/m² (EN 1794-1)
- Material
- Galvanised steel frame + ROCKWOOL stone wool + PE netting + FSC pine
- Wood treatment
- Chrome-free impregnation, use class III (EN 335:2013)

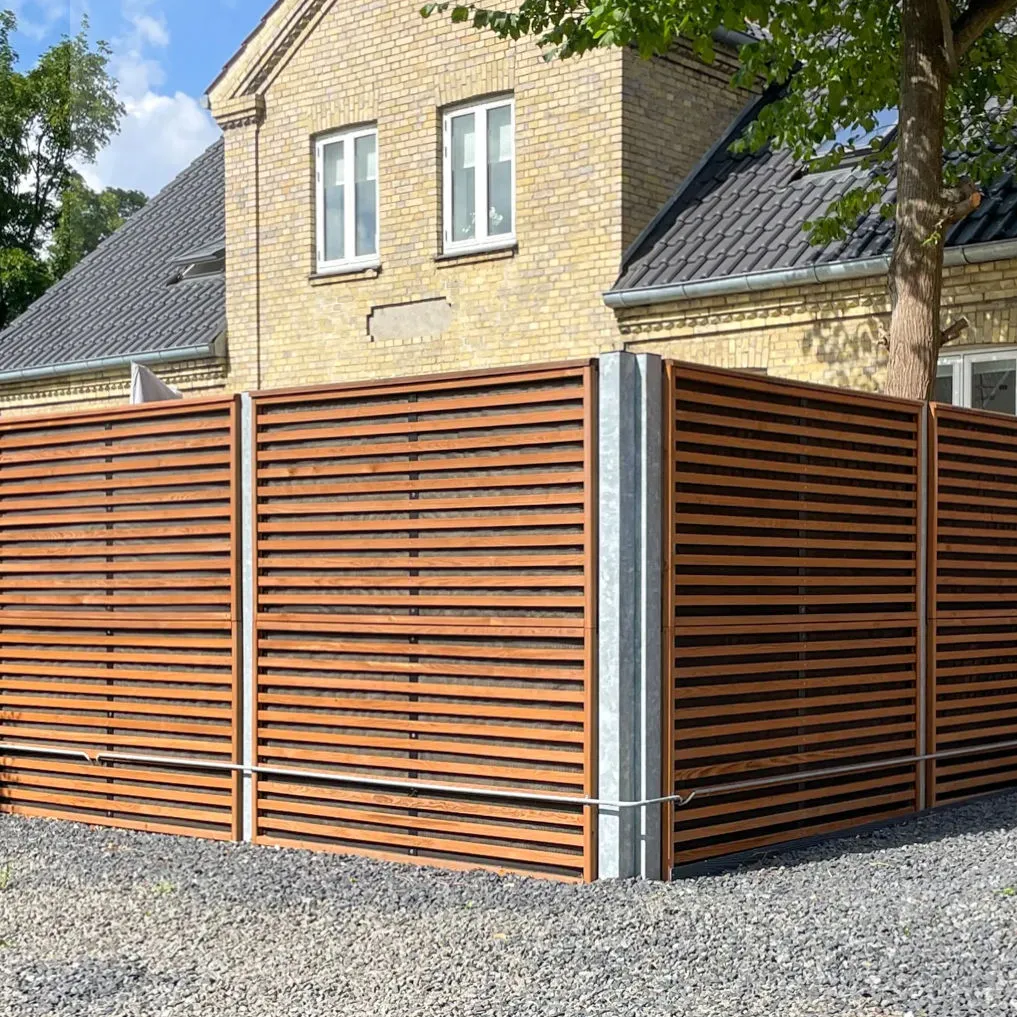

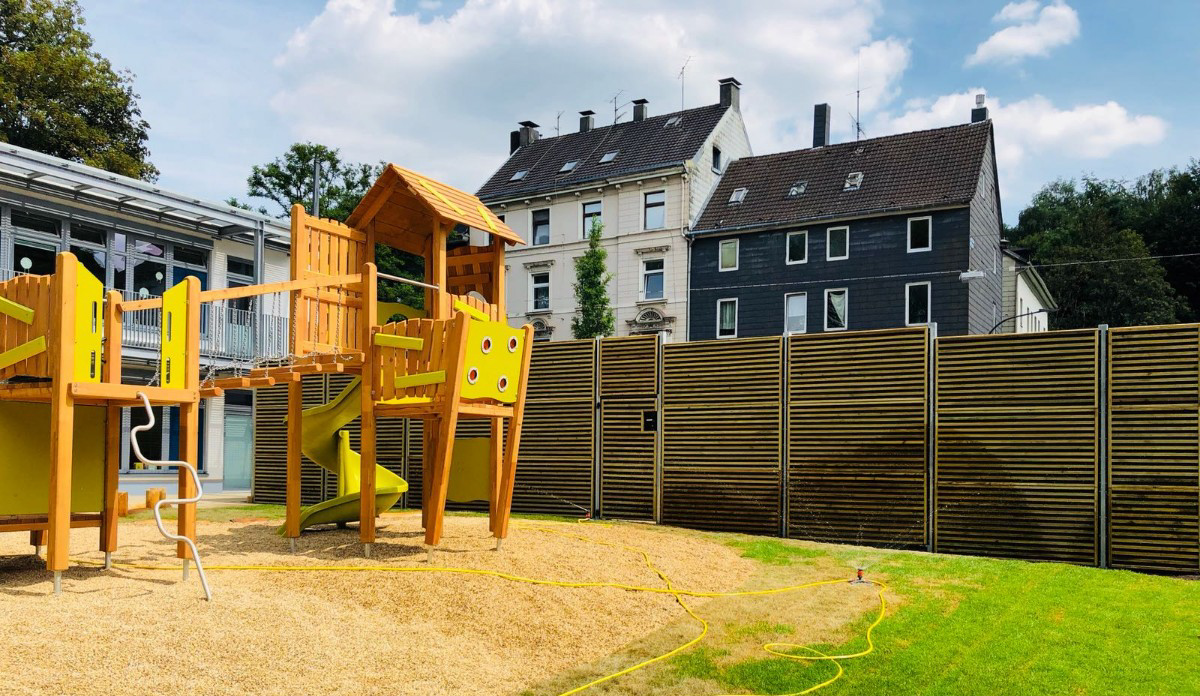

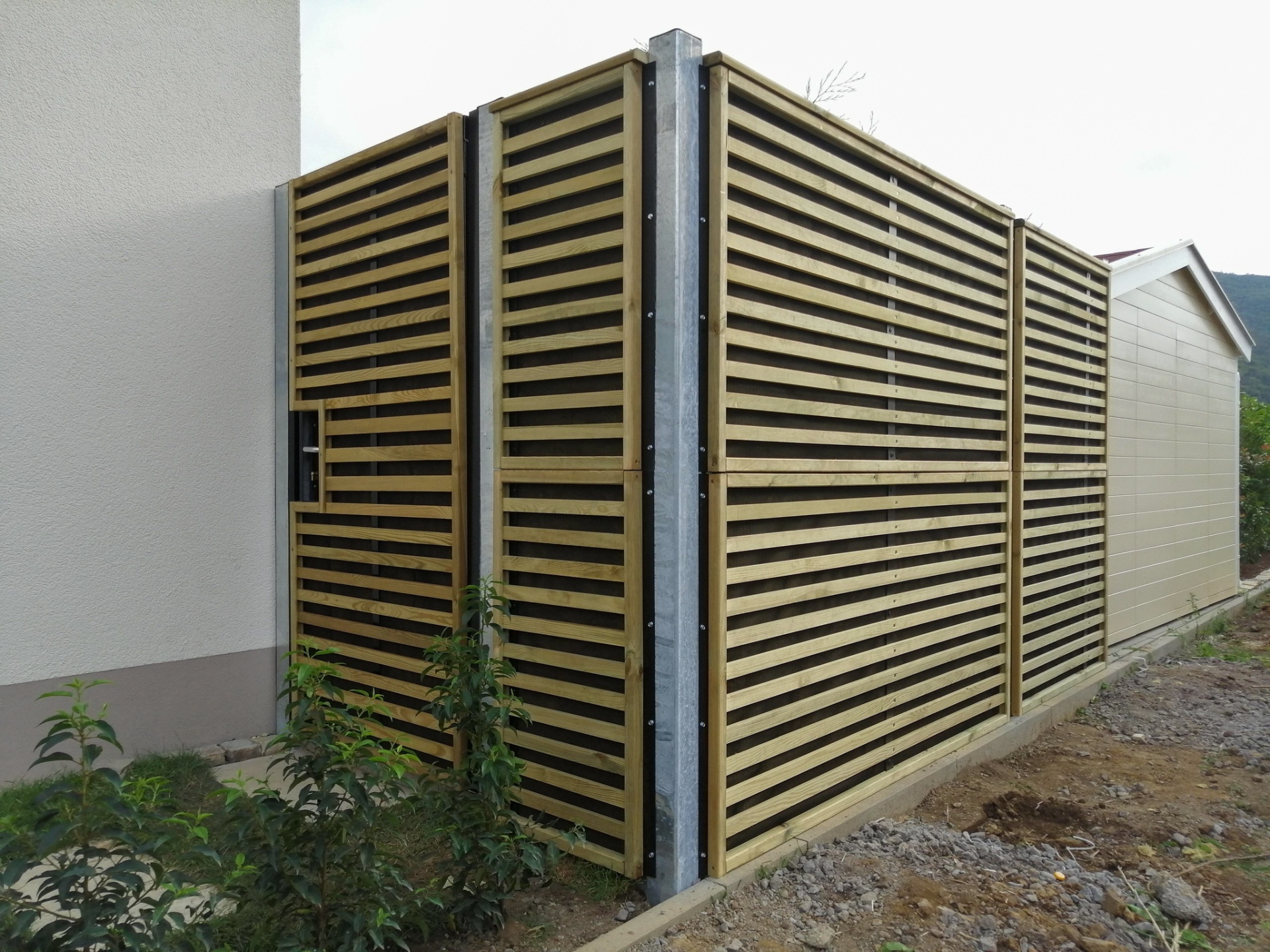

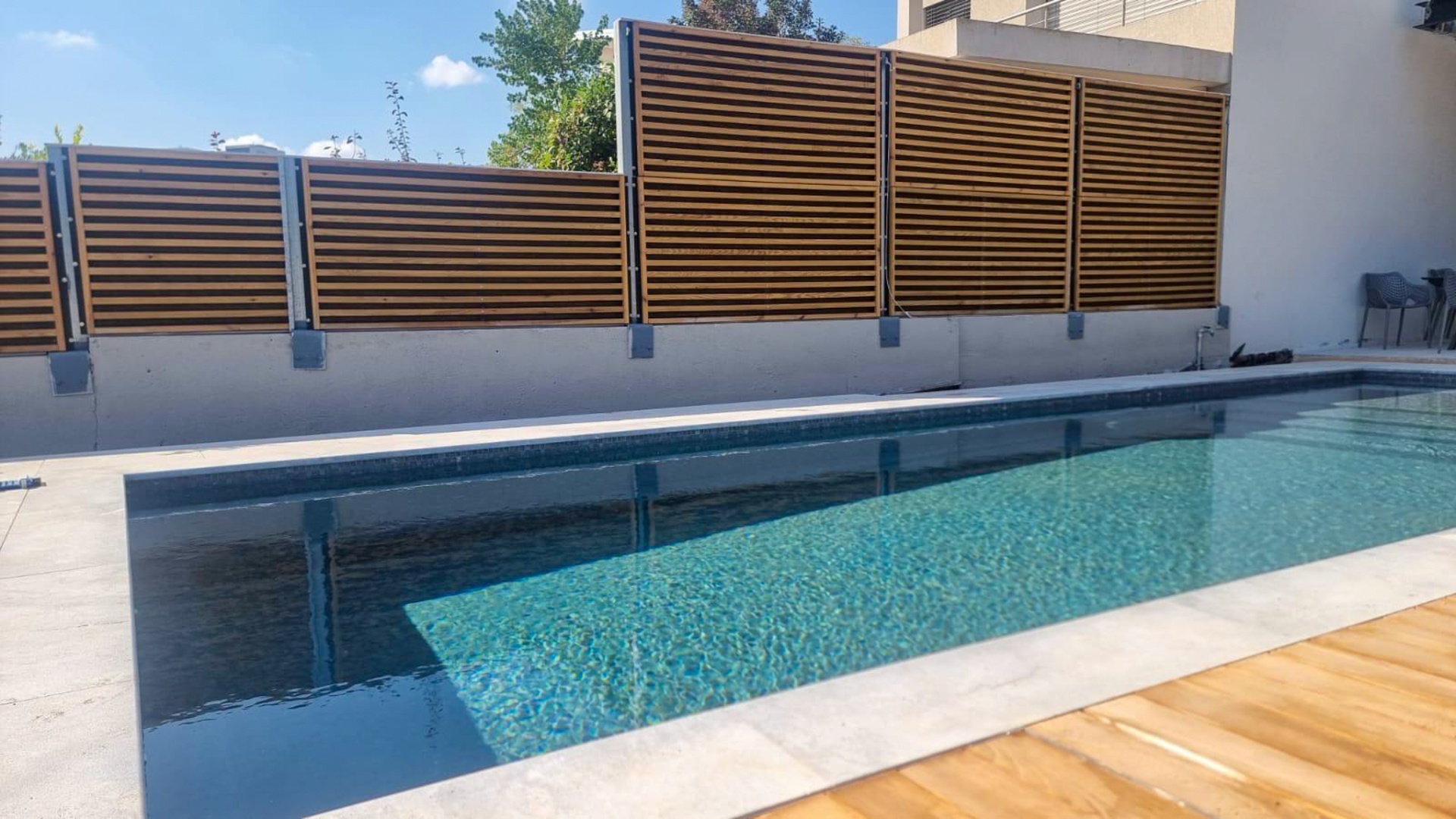

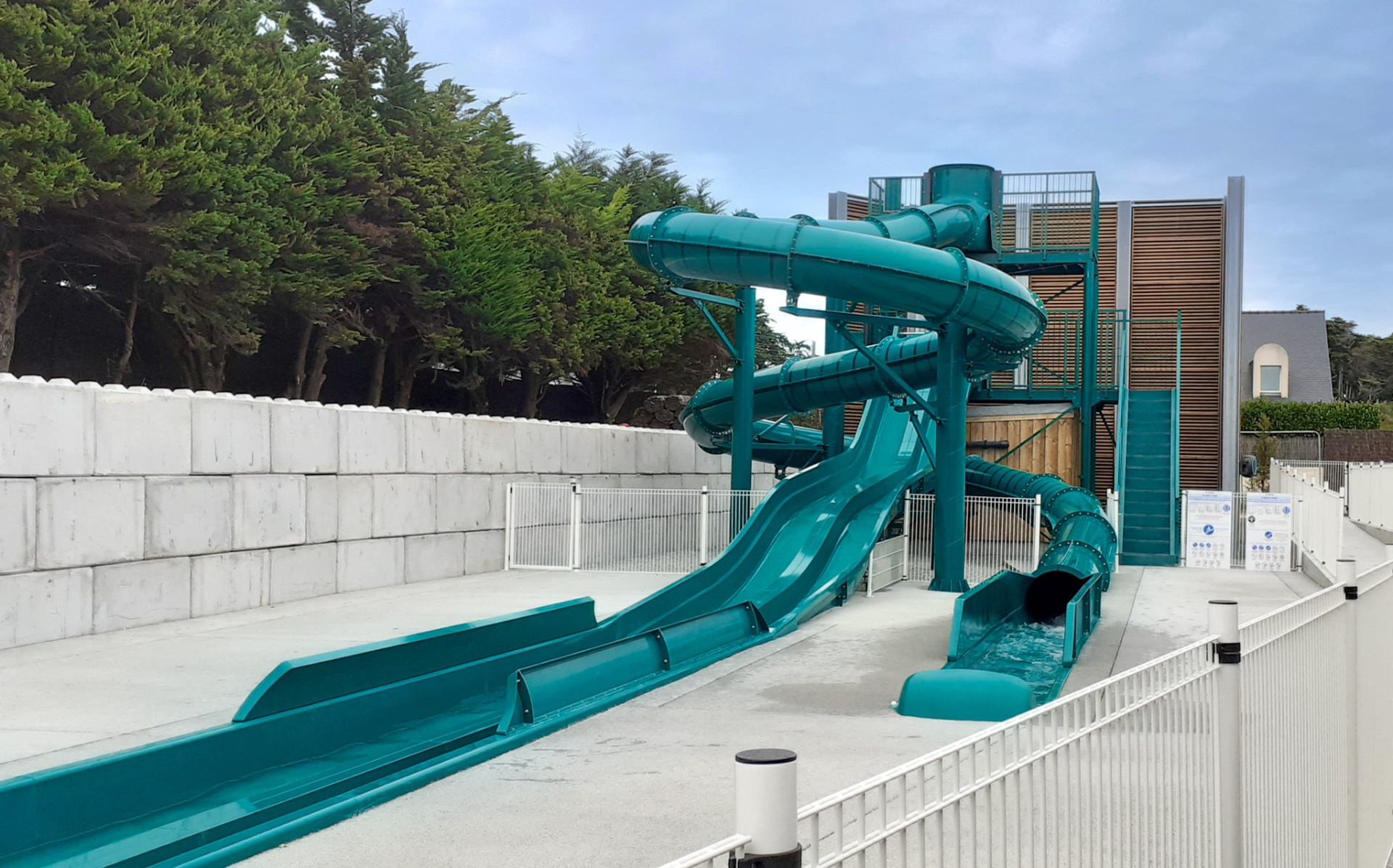

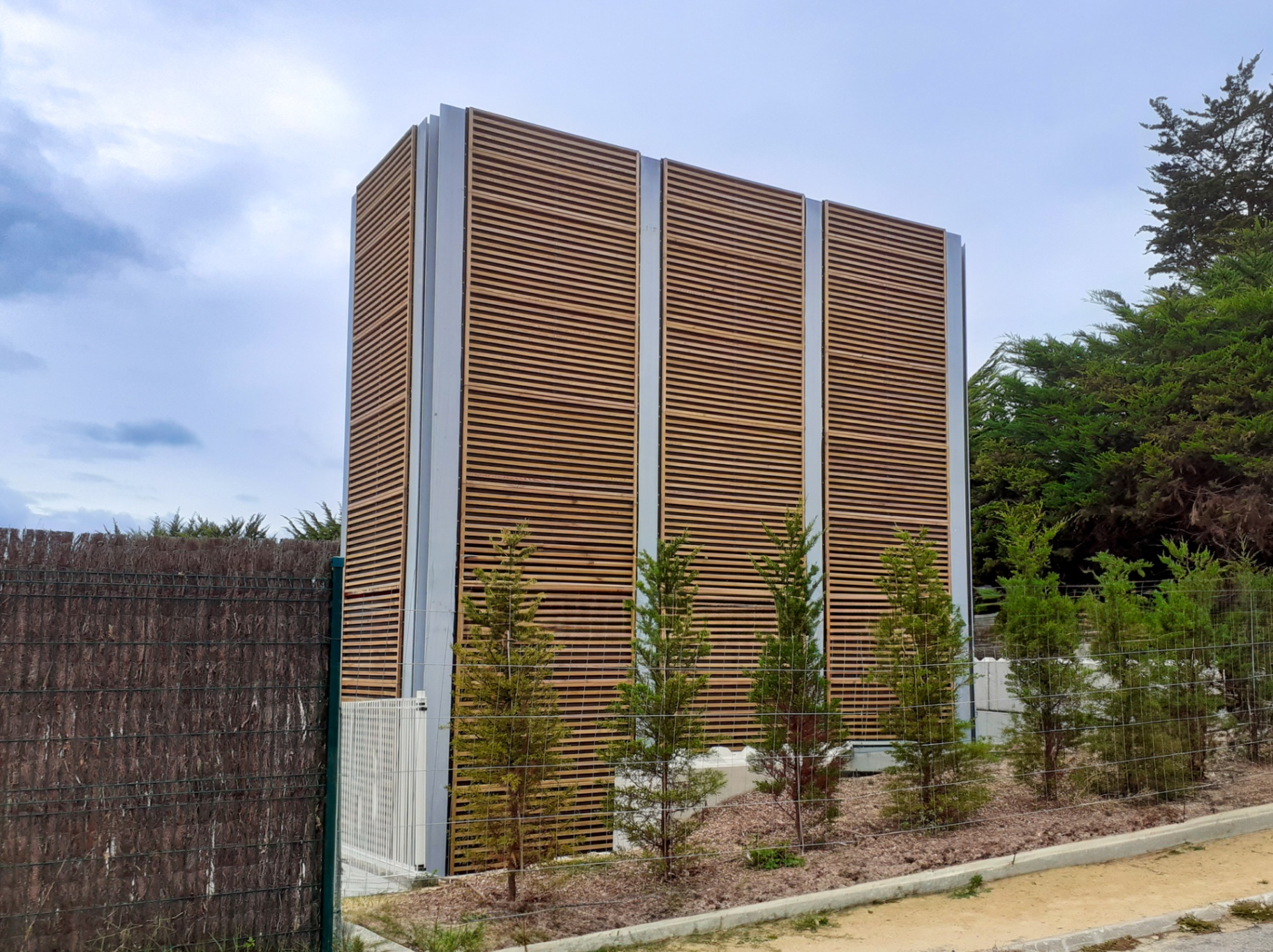

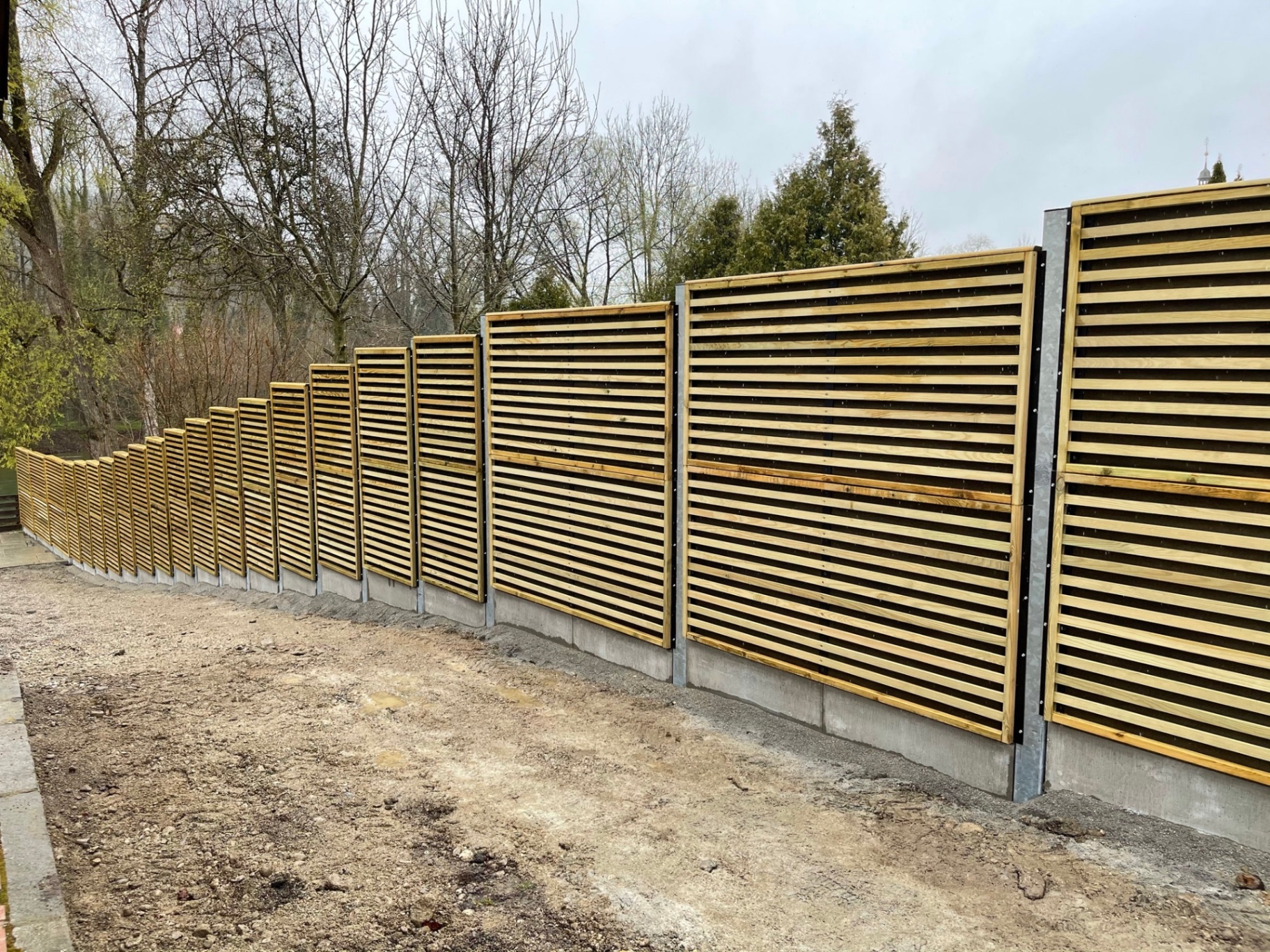

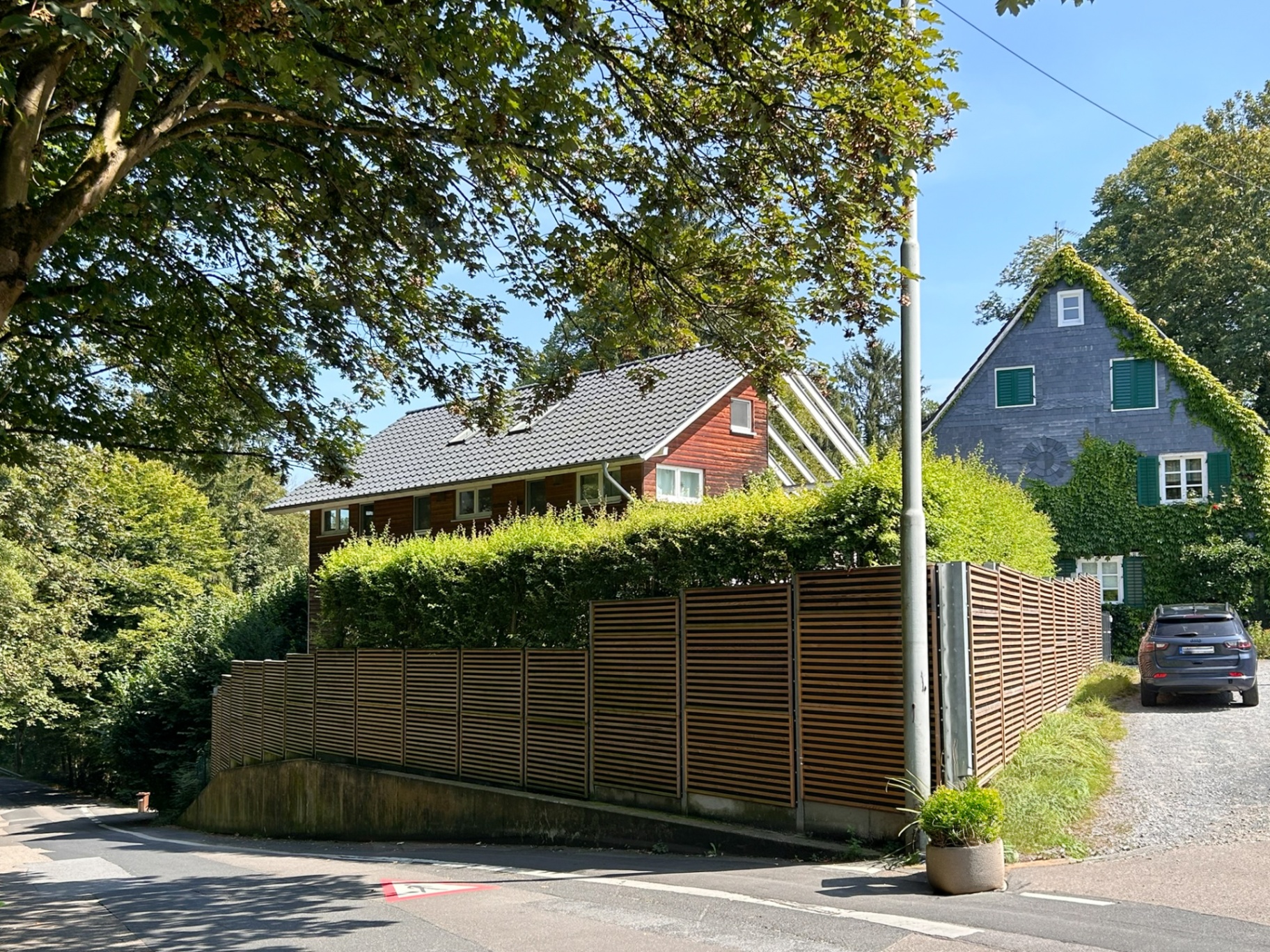

Project photos
Examples of Noistop Wood in practice, installed around technical equipment and industrial applications.
Suitable applications
Related projects
Noise barrier along motorway
Installation of a 120-metre-long noise barrier along the E17 motorway near a residential area in Antwerp. For years, residents had been experiencing severe noise pollution from the heavy motorway traffic.
GhentEnclosure for heat pumps on apartment building
Acoustic enclosure for 6 heat pumps on the roof of an apartment building in Ghent. The heat pumps were causing noise pollution for neighbours and did not comply with Flemish noise standards.
BrugesGarden noise barrier with coir filling
Installation of an ecological noise barrier in a residential garden in Bruges. The family had been suffering for years from the noise of the busy regional road behind their home.
